Bluen microturbines. Power reinvented.
Recuperated Brayton cycle, single shaft, air bearings and an ACTE primary-surface recuperator. Designed and manufactured by us.

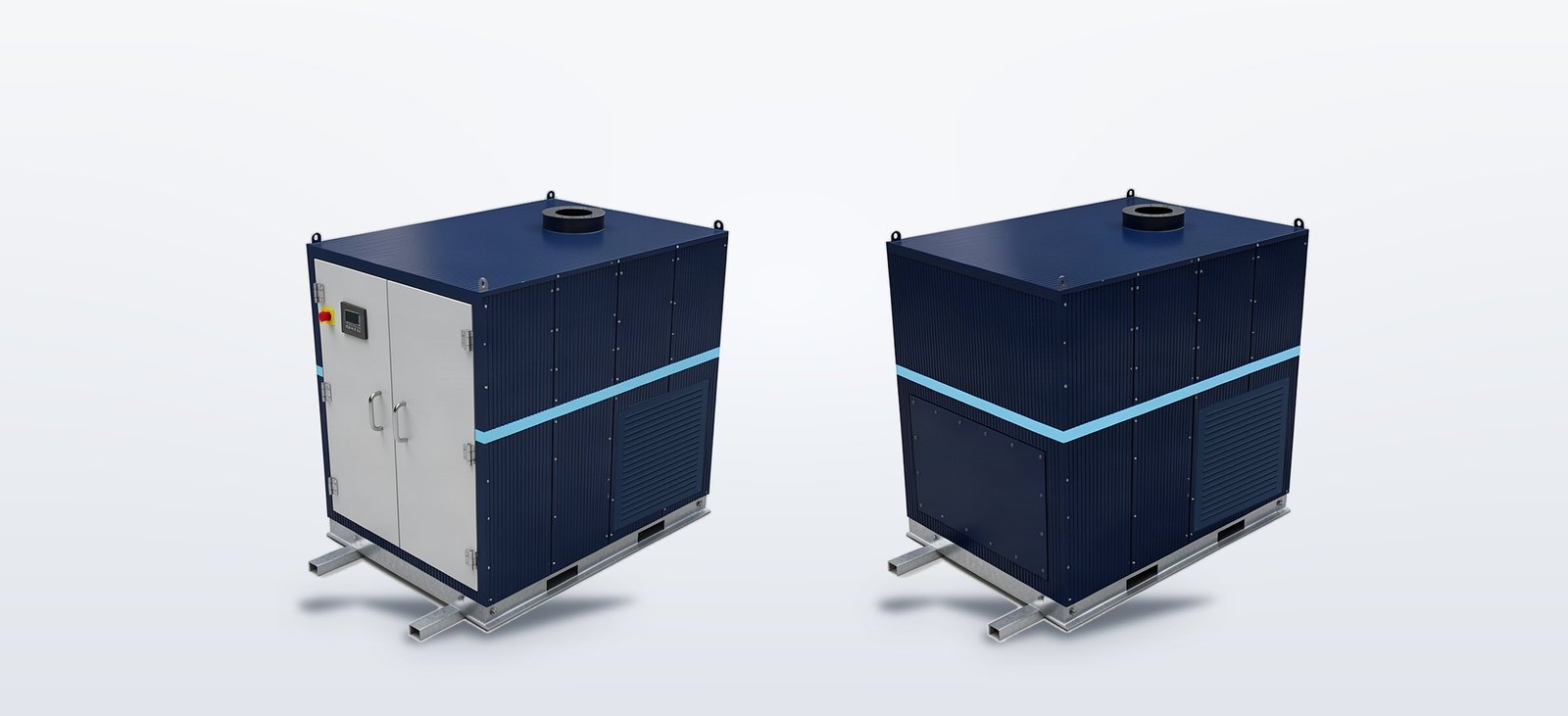

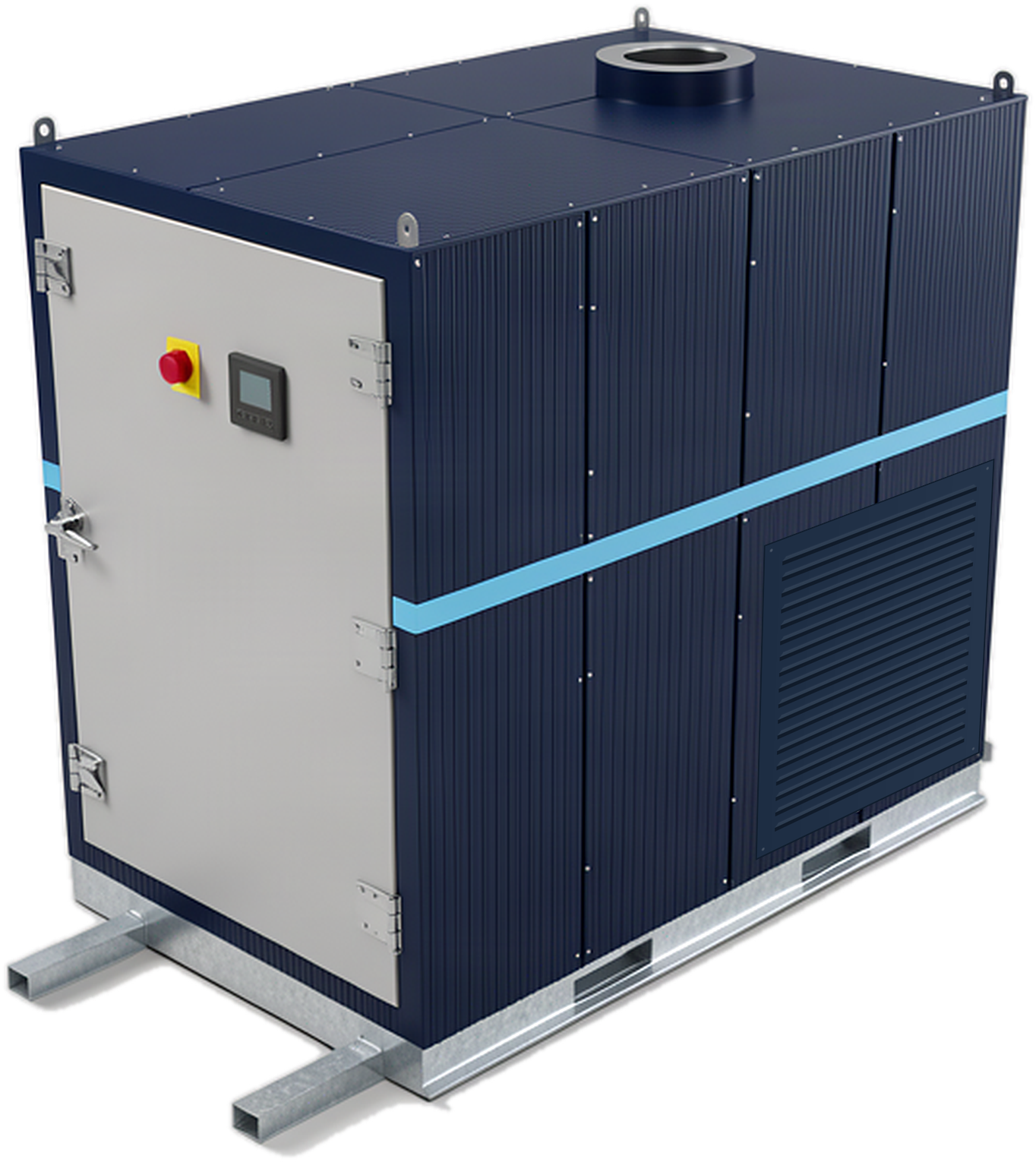

V70
| Item | Value |
|---|---|
| Power rating | 70 kW |
| Electrical efficiency | 35% PCI (LHV) at full load |
| Exhaust temperature | ~190 °C |
| Exhaust flow | 0,7 kg/s |
| Recoverable heat | ≈ 67 kWth (exhaust down to a stack at ~100 °C) |
| Total cogeneration efficiency | ≈ 68% |
| Natural gas consumption | ≈ 20 Nm³/h |
| Fuels | Natural gas, biogas, biomethane, syngas, LPG, propane |
| Bearings | Air bearings, no lubricating oil and no coolant |
| Generator | High-speed permanent magnets, air-cooled |
| Recuperator | ACTE COMPACT, primary surface, counterflow, fully welded stainless steel |
| Electrical output | 380–480 VAC, 50/60 Hz, three-phase |
| Maximum envelope | 2,30 × 1,45 × 2,25 m |
| Maintenance | Inspection every 8.000 h; overhaul every 5 years |
| Control | PLC, remote monitoring and HMI via 4G / Wi-Fi |
| NOx | < 9 ppmvd at 15% O₂ |
Manufacturer specifications at ISO conditions, PCI (LHV). Performance varies with operating conditions.

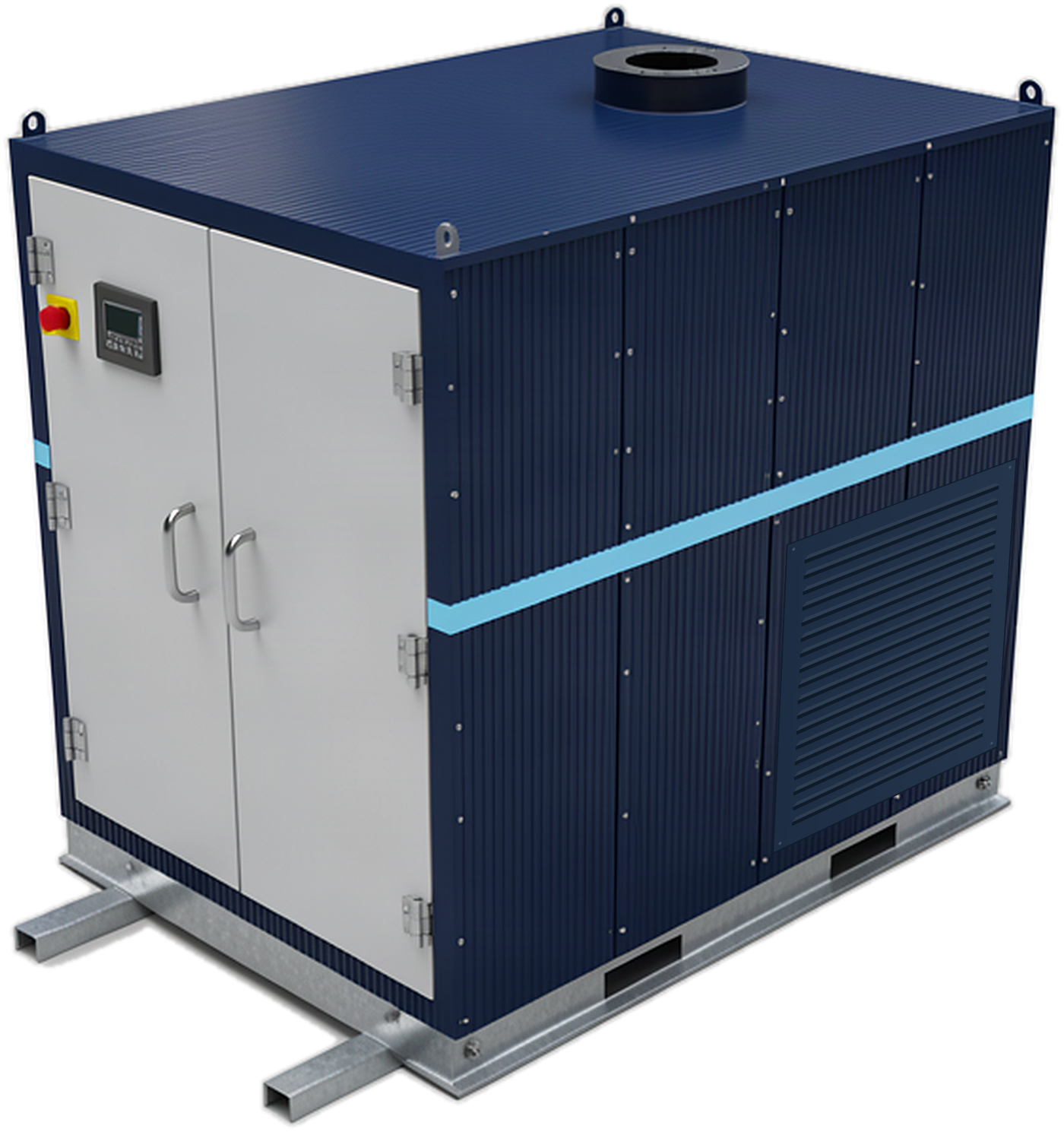

V200
| Item | Value |
|---|---|
| Power rating | 200 kW |
| Electrical efficiency | 35% PCI (LHV) at full load |
| Exhaust temperature | ~190 °C |
| Exhaust flow | 2,0 kg/s |
| Recoverable heat | ≈ 190 kWth (exhaust down to a stack at ~100 °C) |
| Total cogeneration efficiency | ≈ 68% |
| Natural gas consumption | ≈ 58 Nm³/h |
| Fuels | Natural gas, biogas, biomethane, syngas, LPG, propane |
| Bearings | Air bearings, no lubricating oil and no coolant |
| Recuperator | ACTE COMPACT, manufactured and factory-assembled |
| Electrical output | 380–480 VAC, 50/60 Hz; or DC bus in the ID units |
| Maximum envelope | 2,30 × 1,70 × 2,25 m |
| Maintenance | Inspection every 8.000 h; overhaul every 5 years |
| NOx | < 9 ppmvd at 15% O₂ |
Manufacturer specifications at ISO conditions, PCI (LHV). Performance varies with operating conditions.

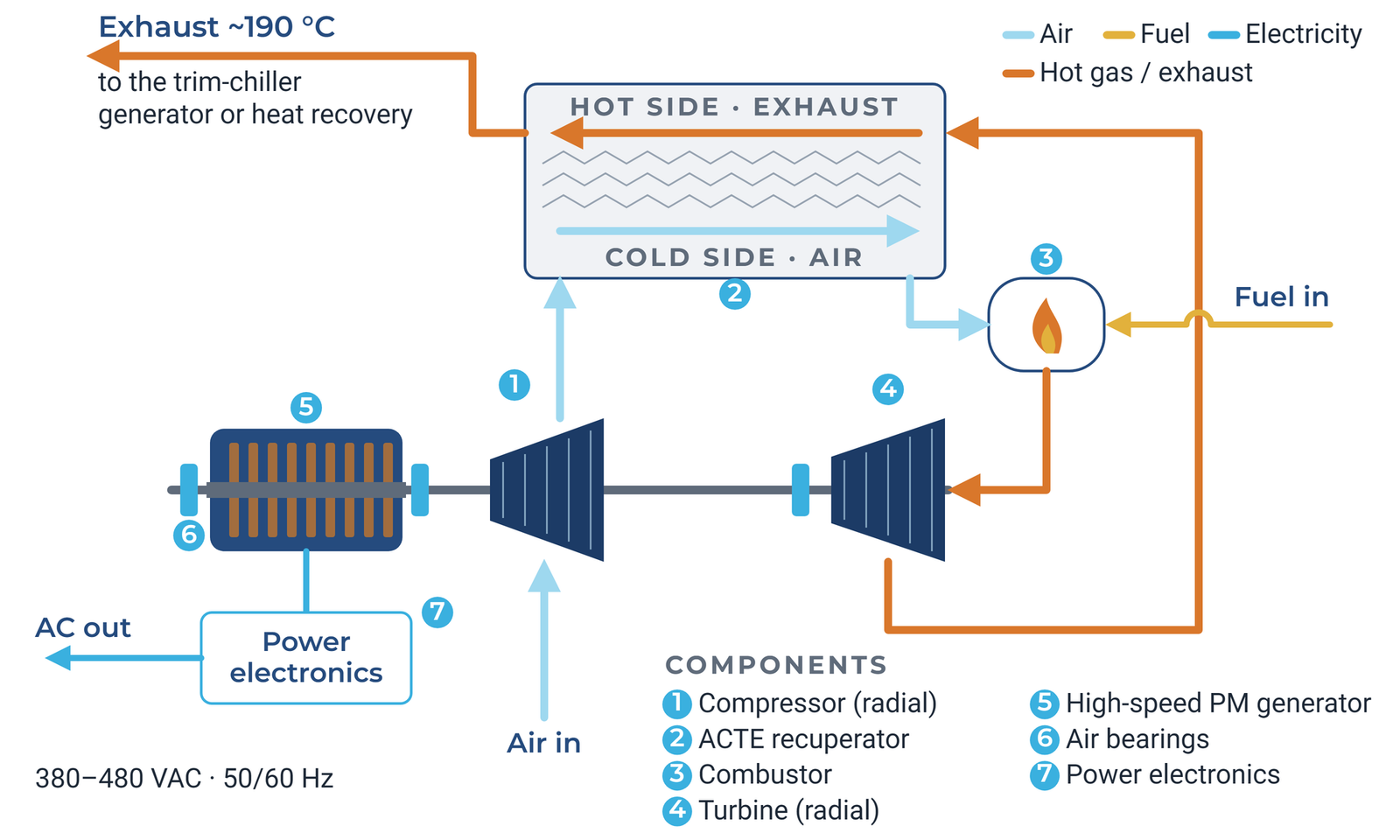

HOW IT WORKS
- The radial compressor draws in and compresses the air.
- The ACTE recuperator preheats that air with exhaust heat.
- The combustor burns the gas in a lean mixture.
- The radial turbine expands the gases and spins the shaft.
- The permanent magnet generator, on the same shaft, produces high-frequency power.
- Air bearings support the shaft without oil.
- Power electronics deliver 50/60 Hz to the grid or DC to the battery.
Manufacturer specifications at ISO conditions, PCI (LHV). Performance varies with operating conditions.

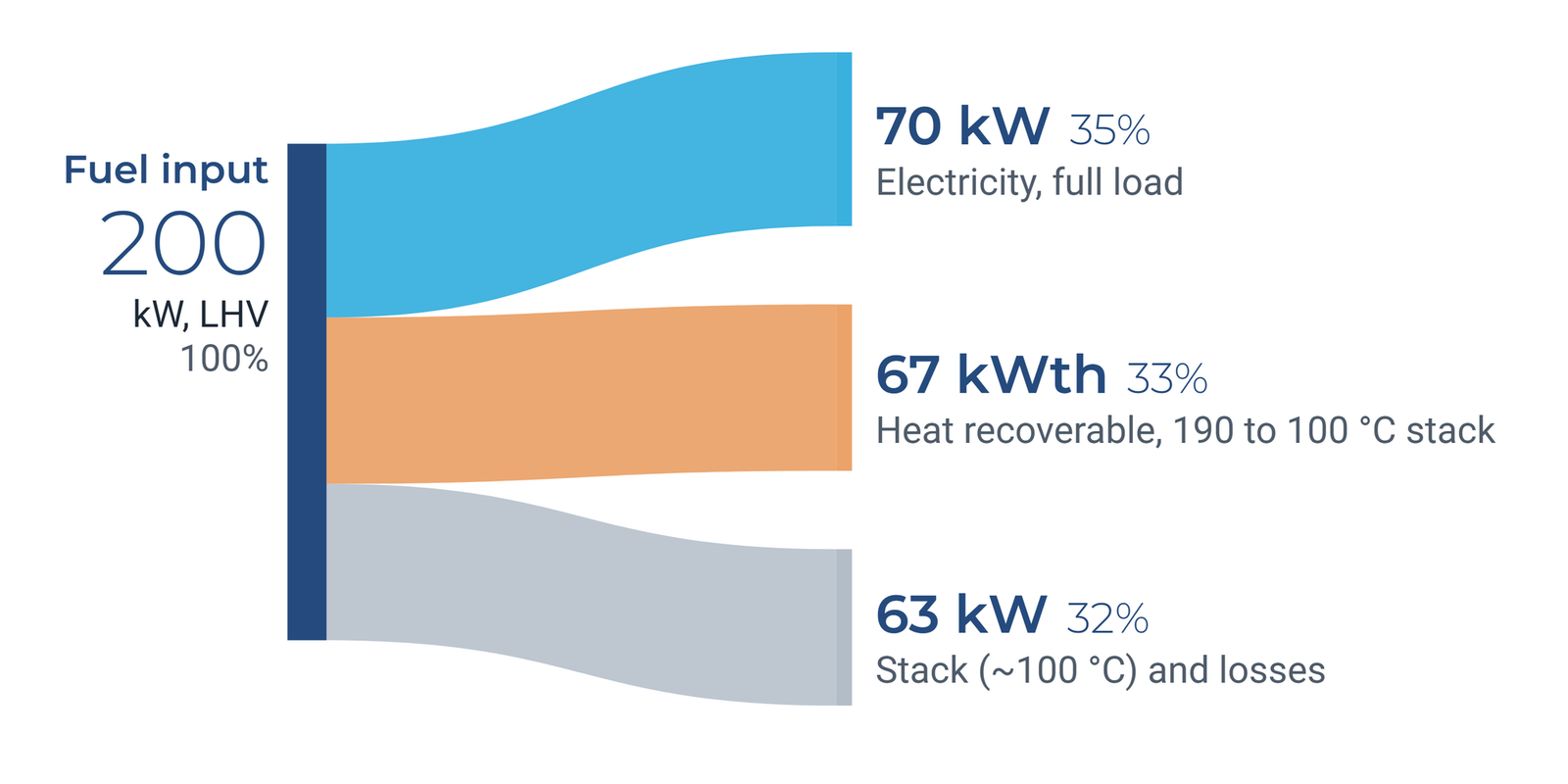

Energy balance
Energy balance at full load, ISO, PCI (LHV): 35% electricity, 33% recoverable heat, 32% stack and losses.
Manufacturer specifications at ISO conditions, PCI (LHV). Performance varies with operating conditions.
Microturbine advantages
No oil and no coolant
24/7 operation with low vibration and noise
A single clean, hot exhaust stream, ideal for cogeneration and trigeneration
Modularity: several units in parallel with N+1 redundancy
Low emissions: lean combustion, designed for low NOx without after-treatment
Bluen vs. conventional microturbines
| Criterion | Bluen V70 / V200 | Typical imported microturbine |
|---|---|---|
| Design and manufacturing | Own design; rotor, generator and recuperator made in-house | Assembly from several suppliers’ components |
| Recuperator | Manufactured by ACTE, a recuperator specialist | Purchased component |
| Fuels | Natural gas, biogas, biomethane, syngas, LPG, propane | Varies by model |
| Support and parts | Factory and engineering in South America | Imported parts, long lead times |
| Cost | Competitive price per kW and lower replacement cost | Price and parts in hard currency |
| Data center integration | ID family designed for AI racks | Generic genset |
Manufacturer specifications at ISO conditions, PCI (LHV). Performance varies with operating conditions.
MICROTURBINE TECHNOLOGY
Inside the technology.
The combustor, high-speed generator and air bearings work together within a single-shaft, recuperated microturbine architecture.

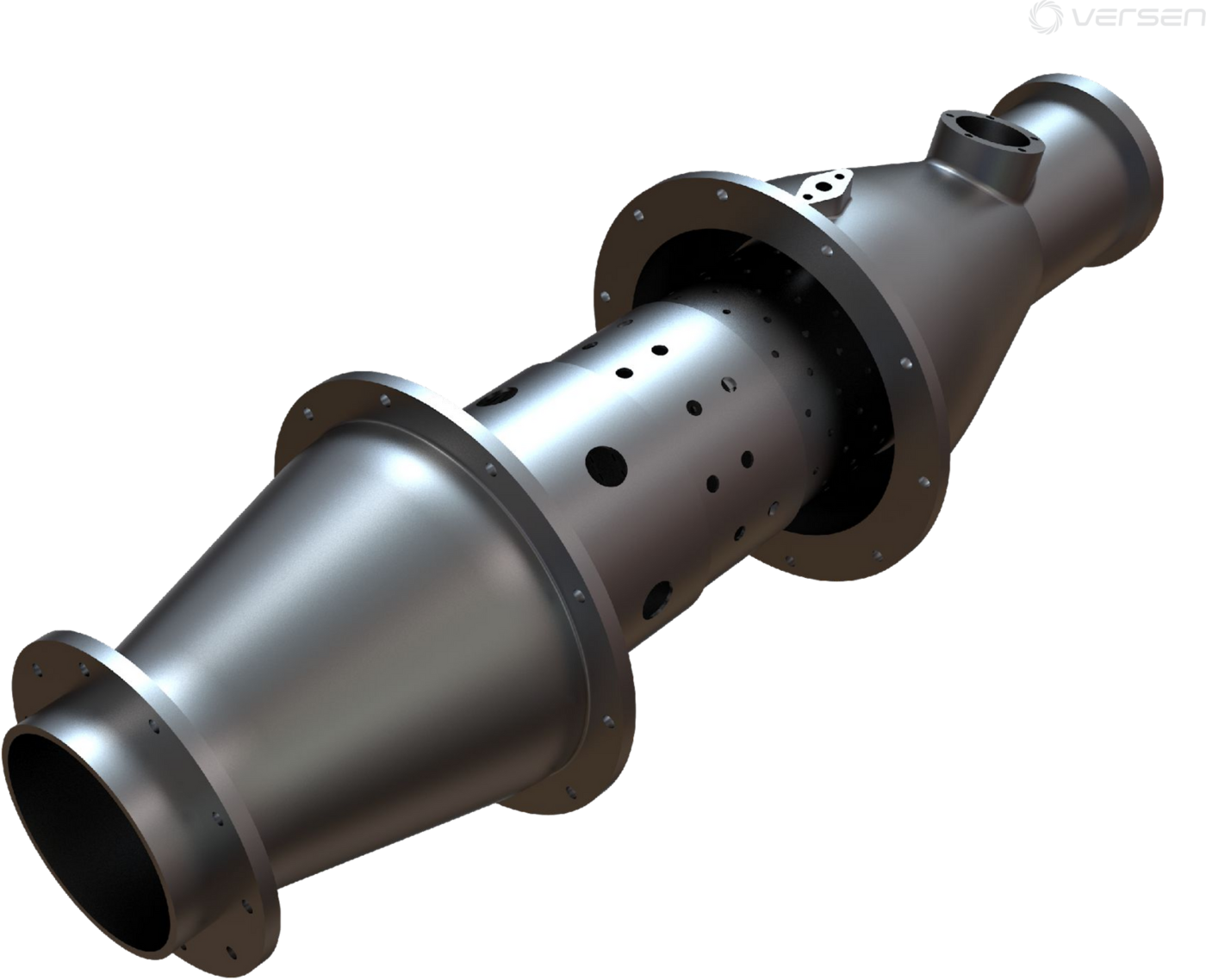

Combustor
The combustion chamber receives compressed air preheated by the ACTE recuperator. Fuel combustion supplies the hot gas that drives the turbine.

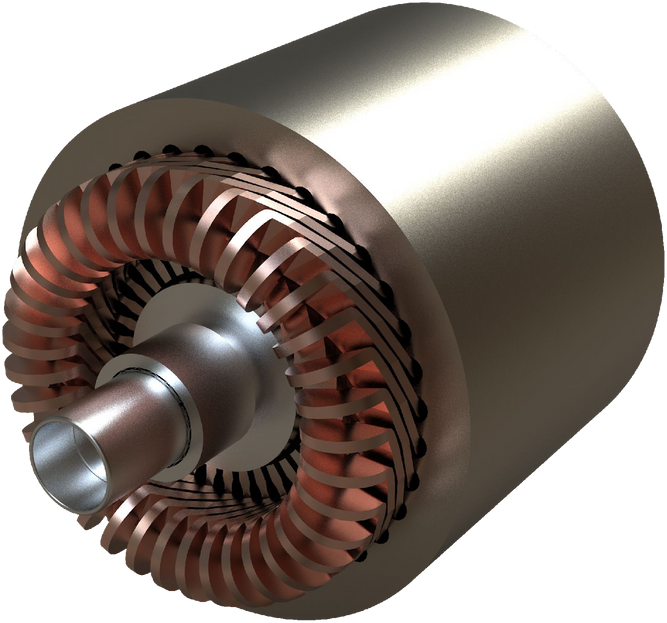

High-speed generator
The high-speed permanent-magnet generator converts mechanical shaft power into electricity. It is integrated into the same rotating assembly as the compressor and turbine.
Air bearings
Air bearings support the high-speed shaft on a film of air rather than lubricating oil, forming part of the oil-free rotating architecture.

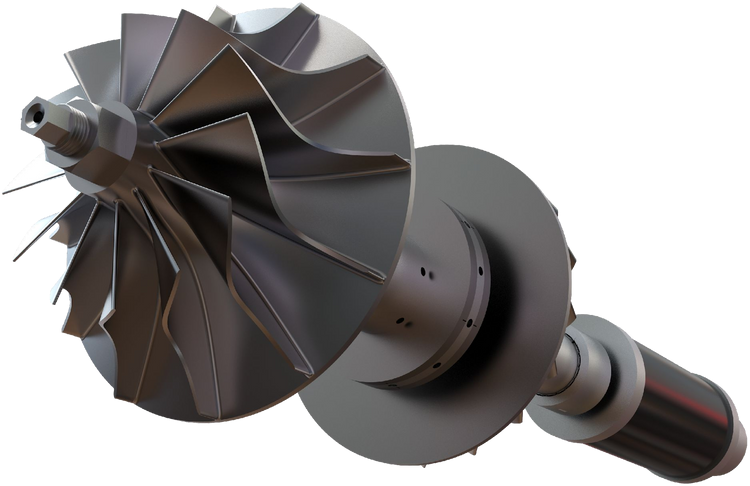

The image shows the related rotor assembly, not a close-up of the bearings.
Discover the research and engineering behind the technology →
Explore the heat-recovery technology: ACTE PY recuperators →
